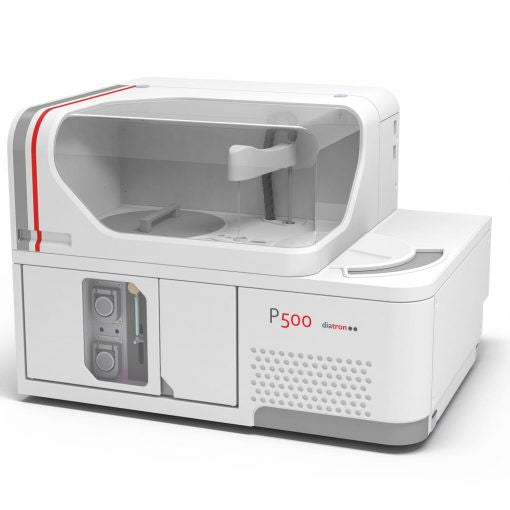

Diatron Pictus 500 (P500) Clinical Chemistry System

The P500 is a bench top, fully automated Clinical Chemistry system with a throughput of up to 340 routine chemistry and 180 ISE tests per hour, state of the art components and user-friendly interface provide a long life platform for analytical excellence. The system includes a full range of reagents, controls and calibrators.

KEY FEATURES AND BENEFITS

• Intelligent software
• High quality components
• Multi-functional pipetting arm
• User friendly interface
• Uninterrupted workflow
• Inventory management
• Remote access & diagnostics
• Cost effective operation

SPECIFICATIONS

• Throughput (tests/hour) Up to 340 tests/hour mono reagent

• ISE: Up to 180-240 tests/hour

• Sample Racks/Positions per rack: 5 / 19

• Samples on-board capacity: 95

• Sample volume (μL): 2 - 200

• Optional direct 4-ISE module

• Reaction volume (μL): 180 - 650

• PMMA reusable/single use cuvettes on board (in segments of five): 80

• Time to first result (seconds): 45

• Serum, plasma, urine, CSF and other sample types can be used

• Refrigerated reagent tray: 8+/- 2 ⁰C

• Refrigerated on-board single reagents/tests: 72

• Water Consumption: up to 2 l/h

• Up to 3 different reagents per test

• Internal Barcode Reader for samples, sectors and reagents

• Crash and collision detection

• Reagent pre-heater

• Clot detection

• QC: Graphical and statistical; Westgaard rules indicated

• Levey-Jennings plots, twin QC and box whisker plots

• Weight: 115 kg, 253 lbs

• Dimensions (Width x Depth x Height): 88 cm x 70 cm x 66 cm, 34.6" x 27.6" x 26"

*The products/features (mentioned herein) are not commercially available in all countries. Due to regulatory reasons their future availability cannot be guaranteed.

OPTIONS

• Optional direct 4-ISE module
• Optional stand/cabinet
• Optional auto fill / drain unit for system wash & waste
